Vertical cylinder drying range machine
Cylinder dryers are an efficient & cheapest system for fabric drying with energy saving due to it’s direct contact drying.
About Cylinder Dryer Machine
Cylinder dryers can be equipped with individual drive to each cylinder. Individual drive system, each cylinder is coupled with a geared A.C. motor. Individually driven cylinders are synchronized with PLC. Especially suited for non woven and delicate fabrics where tension regulation is very critical as the fabric dries. Fabric residual moisture controller can be provided at the exit of the drying range. The feedback from the controller either controls the speed of the machine or steam flow (depending on the process requirement).
Technical Details
Cylinder Width: | 1200-mm to 4000-mm |
Cylinder Diameter: | 570-mm, 760- mm, 800-mm |
Operating Pressure: | Up to 6 Bar./higher on request |
Design Temp.: | 165° C |
Cooling Cylinder: | Single shell type or double Shell Jacketed & Spiral Flow Type Cooling Cylinder |
Speed: | 10 To 150 Mtrs/min |
Stacks: | Fabricated from MS/SS Plates |
Optionals
•Teflon-coating on Drying Cylinder
•Temp. Controller Per Stack or Per
Group of Cylinder.
• In Synchronisation with Finishing Machine or
Individual
• Cooling Cylinder Located In Last Stack or on
Separate Frame.
• Exhaust Hood with Axial Fan
• Chain / Flat
Belt Drive.
• Individual or Alternate Gear Box Motor Drive.
•
Feeding In Scaffold or Batching/Plating Devise
• 2 Bowl/3 Bowl Padding
Mangle.

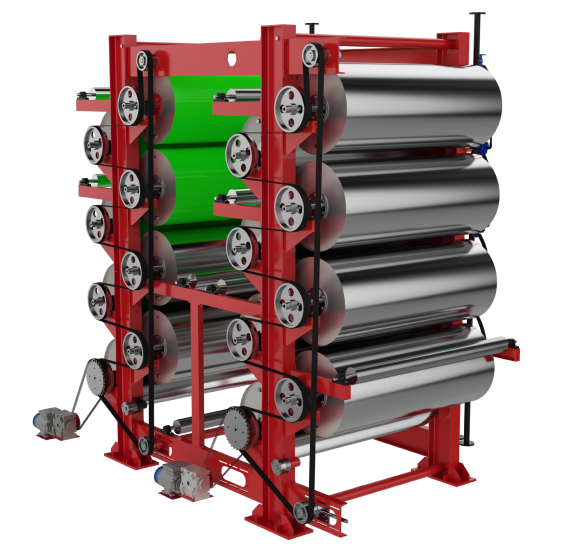

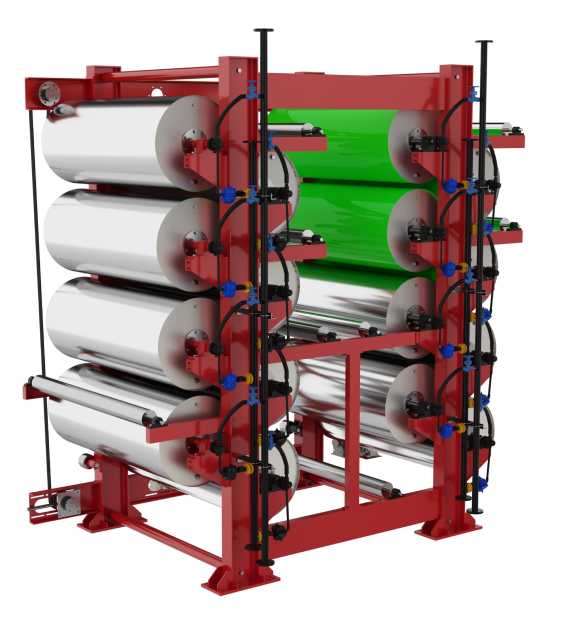

Product view of cylinder dryer machine
